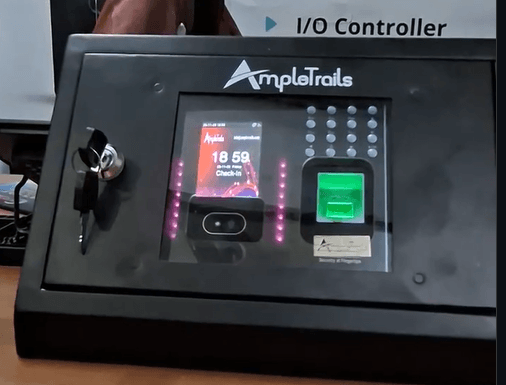

ZKTeco MB160 Metal Enclosure with Lock & Acrylic Front

Description

A multi-cuisine restaurant kitchen in Andheri runs six burners and a tandoor through service, and the staff door to the prep section is twenty feet from the closest gas range. The ZKTeco MB160 biometric attendance machine on the wall by the door has fine grease drift settled into every crevice within a fortnight, the screen fogs up at every steam table opening, and the cook-helpers’ hands are never quite clean by the time they punch in. Bare-faced terminals last six months in that environment. This lockable metal enclosure extends the runway by years.

Why a restaurant kitchen is worse on a device than any office

Steam, grease aerosol and the cleaning solutions the kitchen porters use at midnight are all working against an exposed face terminal. The MB160 chassis was made to handle the mechanical wear; what it can’t handle long-term is the chemical creep into its keypad and ports. A powder-coated steel cover with a sealed acrylic front keeps the chemistry outside — the device stays clean inside the metal enclosure even when the kitchen wall doesn’t.

The build, in plain language

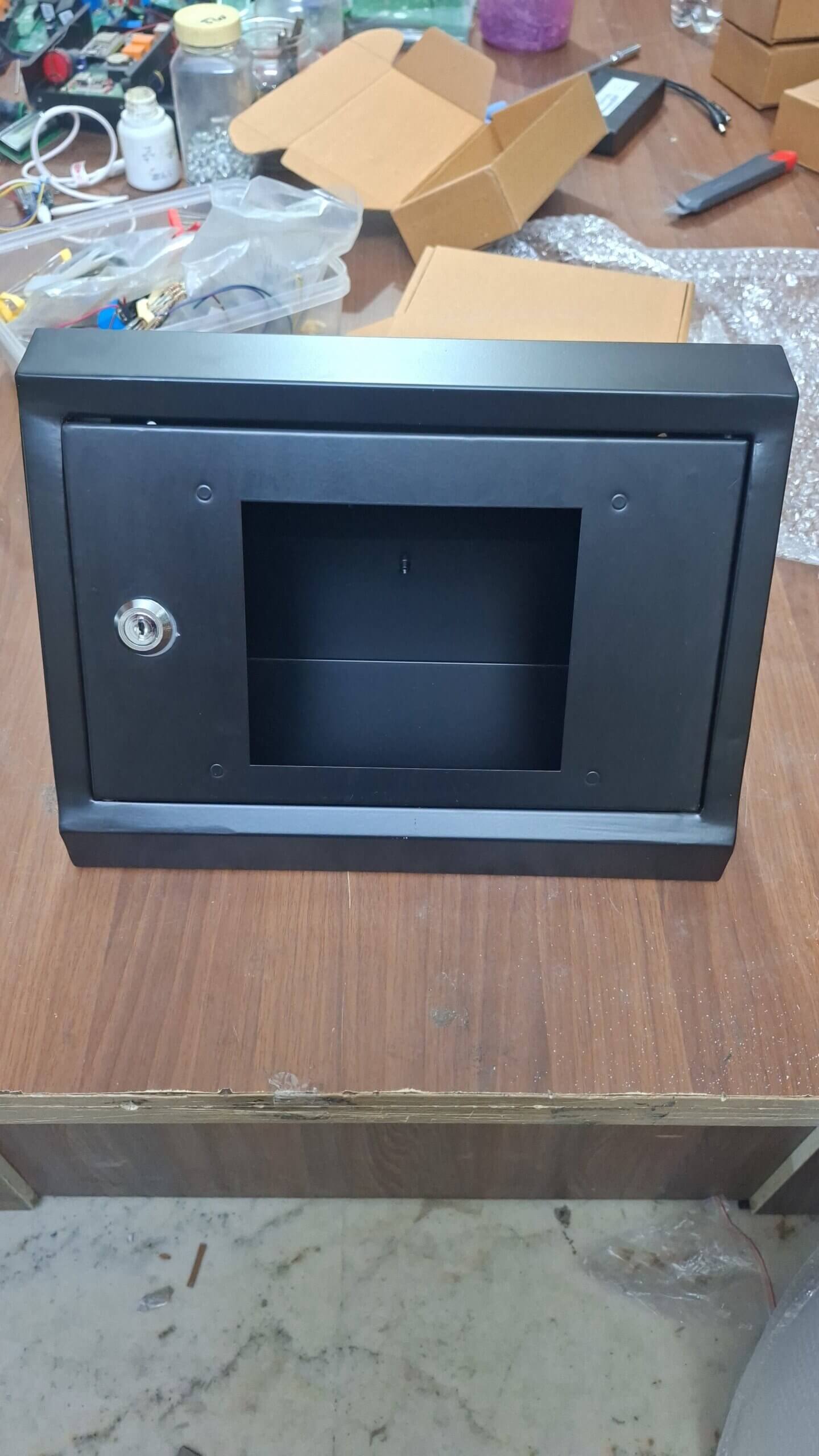

Cold-rolled mild steel, single-piece chassis, powder-coated matte black. The acrylic front is optical-grade and clear over the MB160 screen and fingerprint platen. A cam-style lock with two keys per unit keeps the front panel sealed. Powder-coated finish handles steam and detergent cleaning. Made in India by AmpleTrails.

Dimensions designed, not guessed

Cut for the ZKTeco MB160 chassis specifically. Screen, fingerprint platen, and rear port cut-outs sit at exact factory positions. The acrylic front sits flush — no rattle, no gap for grease aerosol to seep through.

Through power cuts, no missed punches

The Mini UPS bay sits below the device cradle. A 12V Mini UPS drops in and the MB160 keeps logging through every brief outage — and in a restaurant, the kitchen often draws enough to dip the supply when the AC compressors switch in. Mini UPS continuity prevents the cluster of “missing punches” complaints at end of week.

Mounting

Four wall-anchor slots accept 8mm rawl plugs for a tiled or plastered wall. Mount the metal enclosure above splash height so the cleaning crew’s mop bucket doesn’t reach the lock. The flat base also supports counter mounting if the manager’s office handles the punch-in.

At a glance

• Compatible device: ZKTeco MB160 biometric attendance machine
• Material: Cold-rolled mild steel, powder-coated matte black
• Front panel: Optical-grade acrylic, clear over screen and sensor
• Security: Cam-style lock with two keys included
• Power continuity: Internal bay for 12V Mini UPS
• Mounting: Wall (four anchor slots) or desktop
• Origin: Made in India by AmpleTrails
• SKU: ENC-ZKT-MB160

What buyers usually ask before ordering

Will the cover survive a restaurant cleaning regime?
Powder-coated steel handles every standard kitchen detergent. The acrylic front prefers mild soapy water — avoid solvent-based cleaners on it.

Is the ZKTeco MB160 included?
No — this is the metal enclosure only. The MB160 and Mini UPS are sold separately.

How well does the lock hold up against steam exposure?
Cam-style barrel — well sealed for typical kitchen ambient. We’ve had units in F&B locations for two-plus years with no barrel issues.

Does the cover trap heat against the device?
Vent slots on the rear plate keep airflow over the back of the MB160. Don’t mount within a metre of an open burner.

For a chain — can we order matched units across cities?
Yes. We produce in-house in India, so finish and gauge stay consistent across orders.
